da380 - MEMS digital output motion sensor

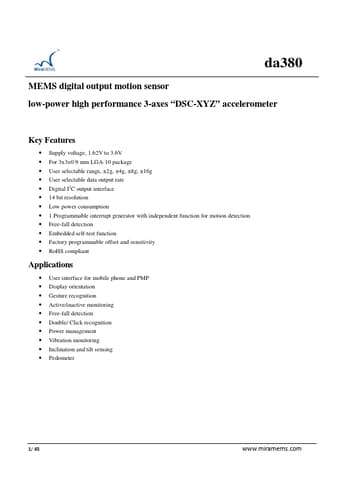

da380 Datasheet Preview — Preview of da380 PDF

Datasheet Details

Part number	da380
Manufacturer	MiraMEMS
File Size	627.45 KB
Description	MEMS digital output motion sensor
Datasheet	da380-MiraMEMS.pdf

da380 Product details

Description

1.1 Block diagram 9 1.2 Pin description9 2 Mechanical and electrical specifications11 2.1 Mechanical characteristics 11 2.2 Electrical characteristics 12 2.3 Absolute maximum ratings13 3 Communication interface14 3.1 Communication interface Electrical specification 14 3.1.1 I2CElectrical specification14 3.2 Digital interface operation15 3.2.1 I2C Operation15 4 Terminology and functionality17 4.1 Terminology 17 4.1.1 Sensitivity 17 4.1.2 Zero-g level17 4.2 Functionality

Features

Supply voltage, 1.62V to 3.6V.
For 3x3x0.9 mm LGA-10 package.
User selectable range, ±2g, ±4g, ±8g, ±16g.
User selectable data output rate.
Digital I2C output interface.
14 bit resolution.
Low power consumption.
1 Programmable interrupt generator with independent function for motion detection.
Free-fall detection.
Embedded self-test function.
Factory programmable offset and sensitivity.
R.
