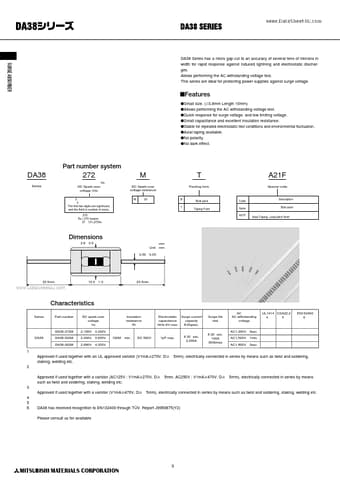

DA38-302M DA38 Series

Bulk pack Axial Taping, Lead pitch 5mm Dimensions 3.8 0.5 Unit 0.50 0.05 mm mm 25.5min 10.0 1.0 25.5min www.DataSheet4U.com Characteristics Series Part number DC spark-over voltage Vs 2,160V 3,240V 2,400V 3,600V 2,880V 4,320V 100M min. DC 500V 1pF max. 8 20 sec. 2,000A Insulation resistance I.

DA38-302M Features

* Small size. (3.8mm Length 10mm)

* Allows performing the AC withstanding voltage test.

* Quick response for surge voltage, and low limiting voltage.

* Small capacitance and excellent insulation resistance.

* Stable for repeated electrostatic test conditions and environmental fluctua

DA38_Mitsubishi.pdf

DA38-302M Datasheet Preview — This datasheet PDF includes multiple part numbers: DA38-302M, DA38. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DA38-302M, DA38

Manufacturer:

Mitsubishi

File Size:

180.96 KB

Description:

Da38 series.

Note:

This datasheet PDF includes multiple part numbers: DA38-302M, DA38.
Please refer to the document for exact specifications by model.
