A5L2.2-6400 Dual-Axis Quasi-static MEMS Mirror

Description

Dual-Axis Quasi-static MEMS Mirror Datasheet A5L2.2-6400(AL/AU) GENERAL OVERVIEW Mirrorcle Technologies Gimbal-Less Dual-Axis Quasi-static MEMS Mirro.

📥 Download Datasheet

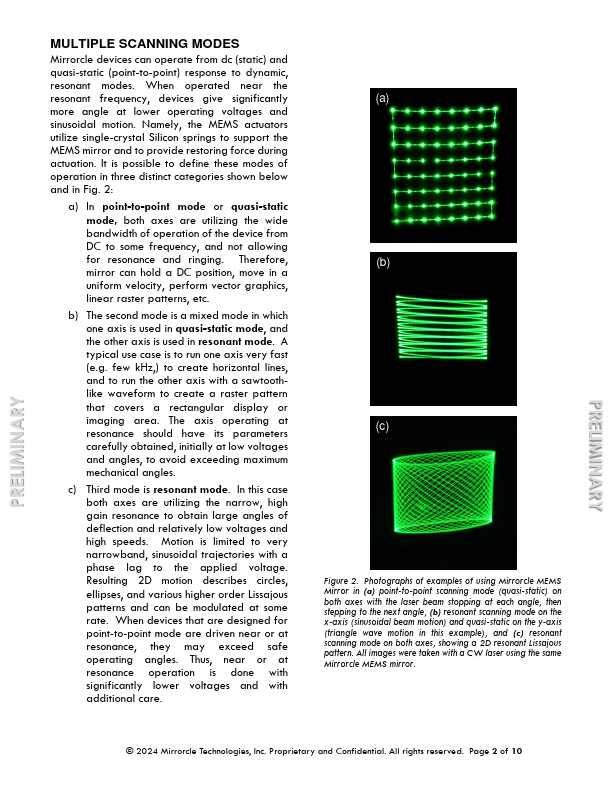

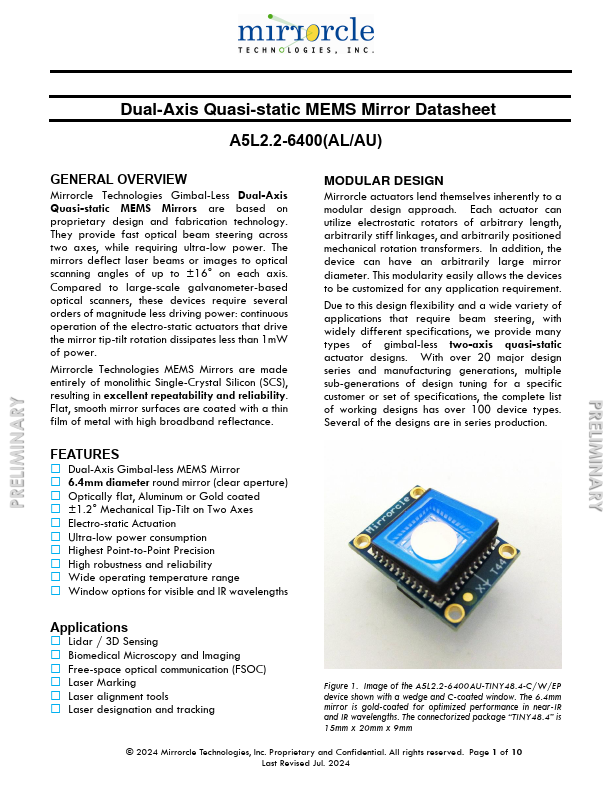

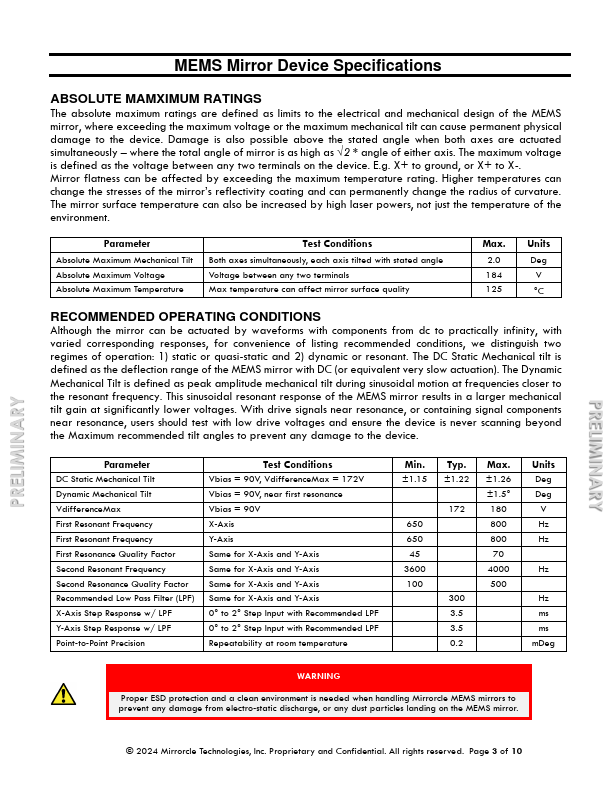

A5L2.2-6400 Datasheet Preview — Preview of A5L2.2-6400 PDF

Datasheet Specifications

Part number: A5L2.2-6400
Manufacturer: Mirrorcle
File Size: 1.09 MB
Datasheet: A5L2.2-6400-Mirrorcle.pdf
Description: Dual-Axis Quasi-static MEMS Mirror

Features

*  Dual-Axis Gimbal-less MEMS Mirror  6.4mm diameter round mirror (clear aperture)  Optically flat, Aluminum or Gold coated  ±1.2° Mechanical Tip-Tilt on Two Axes  Electro-static Actuation  Ultra-low power consumption  Highest Point-to-Point Precision  High robustness and reliability  Wide op

Applications

* that require beam steering, with widely different specifications, we provide many types of gimbal-less two-axis quasi-static actuator designs. With over 20 major design series and manufacturing generations, multiple sub-generations of design tuning for a specific customer or set of specifications, t
