DW9255

35.42MHz SAW Filter

DW9255 Features

* INPUT + s Insertion Loss of 17dB ±1dB (typical) s 1dB Bandwidth 1.9MHz (typical) s Passband Ripple 0.8dB (typical) s Low Profile Ceramic Surface Mount Package s Operating Temperature Range -40° to +85°C GND 3 2 INPUT - s Centre Frequency of 35.42MHz 1 12 GND GND 4 11 GND DW9255 APPLICATIO

DW9255 General Description

GPS receiver RF Front-end Miniature GPS receiver RF Front-end Data Reference DS4056 DS4374 LCS12/4 Fig.1 Pinout 1 DW9255 GPS Antenna SAW 1st IF Filter LNA GP2010/15 RF Front End DW9255 Clock Crystal GP2021 12 channel Correlator + Support Functions DATA BUS ADDRESS BUS TO PROCESSOR TCXO 2 x.

DW9255 Datasheet (34.50 KB)

Preview of DW9255 PDF

Datasheet Details

Part number:

DW9255

Manufacturer:

Mitel Networks Corporation

File Size:

34.50 KB

Description:

35.42mhz saw filter.

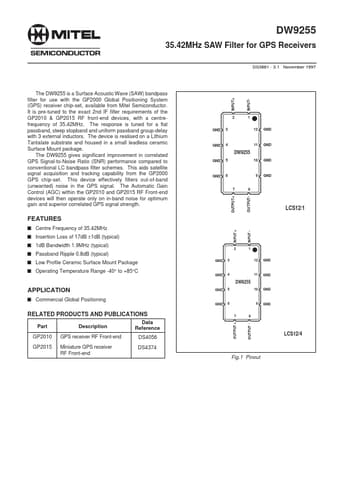

DW9255 DW9255 35.42MHz SAW Filter for GPS Receivers DS3861 - 3.1 November 1997 OUTPUT+ OUTPUT- The DW9255 is a Surface Acoustic Wave (SAW) bandpas.
