DW9268

240.192MHz IF SAW Filter

DW9268 Features

* s 240.192MHz Centre Frequency (fo) s Low Insertion Loss (8dB maximum) s 3dB Passband 1.3MHz (typical) s Quartz Temperature Stability s Low Profile Ceramic LCC Package ABSOLUTE MAXIMUM RATINGS DC Voltage Input Power Max. VDC PIN 0V 10dBm NOMINAL IMPEDANCE Input: Output: 500Ω // 16pF 625Ω // 14pF 5

DW9268 Datasheet (101.58 KB)

Preview of DW9268 PDF

Datasheet Details

Part number:

DW9268

Manufacturer:

Mitel Networks Corporation

File Size:

101.58 KB

Description:

240.192mhz if saw filter.

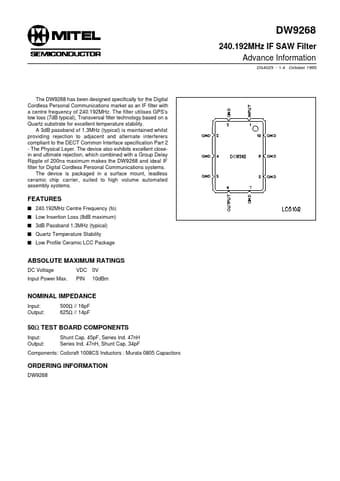

DW9268 DW9268 240.192MHz IF SAW Filter Advance Information DS4025 - 1.4 October 1995 The DW9268 has been designed specifically for the Digital Cordl.
