SL3522 Datasheet - Mitel Networks Corporation

500MHz 75dB Logarithmic/Limiting Amplifier

SL3522 Features

* an on

* chip video amplifier with provision for external adjustment of log Slope and offset. It also features a balanced RF output. The SL3522 operates from supplies of ±5V. N/C N/C VEE GND VEE GND VEE RF O/P GND RF O/P

* RF O/P+ RF O/P VEE VIDEO O/P VEE VIDEO O/P VIDEO O/P VCC 1 2 3

SL3522 General Description

The SL3522 is a complete monolithic successive detection Log/limiting amplifier which can operate over an input frequency range of 100MHz to 500MHz. Producing a log/lin characteristic for input signals between -64dBm and +6dBm, the log amplifier can provide an accuracy of better than ±1.00dB at case.

SL3522 Datasheet (831.00 KB)

SL3522 Datasheet Preview — Preview of SL3522 PDF

Datasheet Details

Part number:

SL3522

Manufacturer:

Mitel Networks Corporation

File Size:

831.00 KB

Description:

500mhz 75db logarithmic/limiting amplifier.

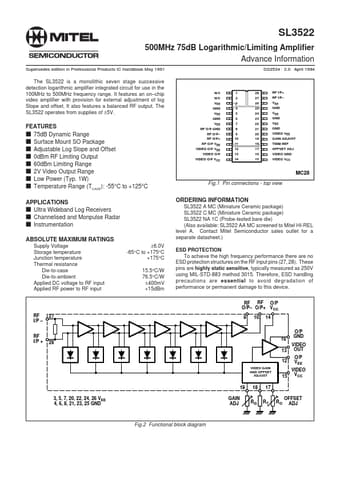

SL3522 500MHz 75dB Logarithmic/Limiting Amplifier Advance Information Supersedes edition in Professional Products IC Handbook May 1991 DS3534 - 2.0 Ap.
