MH88435-P - Data Access Arrangement Preliminary Information

Mitel Networks

📥 Download Datasheet

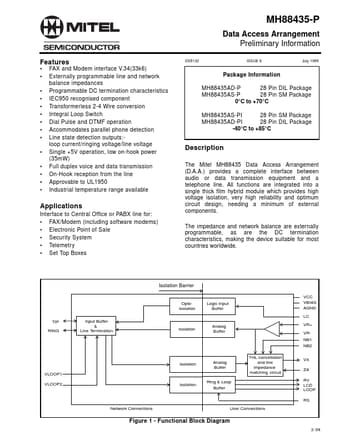

MH88435-P Datasheet Preview — Preview of MH88435-P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MH88435-P
Manufacturer: Mitel Networks
File Size: 71.33 KB
Datasheet: MH88435-P_MitelNetworksCorporation.pdf
Description: Data Access Arrangement Preliminary Information

MH88435-P Product details

Description

The Mitel MH88435 Data Access Arrangement (D.A.A.) provides a complete interface between audio or data transmission equipment and a telephone line.

Features

FAX and Modem interface V.34(33k6) Externally programmable line and network balance impedances Programmable DC termination characteristics IEC950 recognised component Transformerless 2-4 Wire conversion Integral Loop Switch Dial Pulse and DTMF operation Accommodates parallel phone detection Line state detection outputs:loop current/ringing voltage/line volta.
