NWK954

QUAD FAST ETHERNET REPEATER

NWK954 Features

* s Compliant with IEEE 802.3 100BASE-TX Repeater Unit Specification s Incorporates four IEEE 802.3 Compliant 100BASE-TX Ports s Local Expansion Port for Cascading to 24 Ports s Stackable Backplane for Expansion up to 192 Ports s Link/Activity LED and Receive Error LED for each Port s Collision LED s

NWK954 General Description

Overvlew The NWK954 is a mixed-signal CMOS device which integrates all of the functions required for an unmanaged 4port 100BASE TX repeater as defined in the IEEE 802.3 Standard. The device incorporates all of the necessary 100BASE-TX PHY functions to allow direct interfacing to a quad 1:1 magnetics.

NWK954 Datasheet (176.85 KB)

Preview of NWK954 PDF

Datasheet Details

Part number:

NWK954

Manufacturer:

Mitel Networks

File Size:

176.85 KB

Description:

Quad fast ethernet repeater.
NWK954 QUAD FAST ETHERNET REPEATER PRELIMINARY INFORMATION Supersedes January 1998 version, DS4842 - 1.1 DS4842-2.1 April 1998 The NWK954 is a fully .

📁 Related Datasheet

NWK954CG - QUAD FAST ETHERNET REPEATER (Mitel Networks)
NWK954 QUAD FAST ETHERNET REPEATER PRELIMINARY INFORMATION Supersedes January 1998 version, DS4842 - 1.1 DS4842-2.1 April 1998 The NWK954 is a fully .

NWK954D - QUAD FAST ETHERNET REPEATER (Mitel Networks)
NWK954 QUAD FAST ETHERNET REPEATER PRELIMINARY INFORMATION Supersedes January 1998 version, DS4842 - 1.1 DS4842-2.1 April 1998 The NWK954 is a fully .

NWK954GH1N - QUAD FAST ETHERNET REPEATER (Mitel Networks)
NWK954 QUAD FAST ETHERNET REPEATER PRELIMINARY INFORMATION Supersedes January 1998 version, DS4842 - 1.1 DS4842-2.1 April 1998 The NWK954 is a fully .

NWK914CG - PHY/PMD High Speed Copper Media Transceiver (Mitel Networks)
NWK914D NWK914D PHY/PMD High Speed Copper Media Transceiver Preliminary Information DS4829 - 1.1 December 1997 The NWK914D is a Physical Layer devic.

NWK914D - PHY/PMD High Speed Copper Media Transceiver (Mitel Networks)
NWK914D NWK914D PHY/PMD High Speed Copper Media Transceiver Preliminary Information DS4829 - 1.1 December 1997 The NWK914D is a Physical Layer devic.

NWK914D - PHY/PMD High Speed Copper Media Transceiver (Zarlink Semiconductor)
.. NWK914D NWK914D PHY/PMD High Speed Copper Media Transceiver Preliminary Information DS4829 - 1.1 December 1997 The NWK914D is a.

NWK914GP1N - PHY/PMD High Speed Copper Media Transceiver (Mitel Networks)
NWK914D NWK914D PHY/PMD High Speed Copper Media Transceiver Preliminary Information DS4829 - 1.1 December 1997 The NWK914D is a Physical Layer devic.

NWK933 - 3.3V 10/100 Fast Ethernet Transceiver to MII (Mitel Networks)
NWK933 NWK933 3.3V 10/100 Fast Ethernet Transceiver to MII DS5029 Issue no 2.1 May 1999 Features Odering Information q q q q q q q q q q q q q q q q.

TAGS

NWK954 QUAD FAST ETHERNET REPEATER Mitel Networks

Image Gallery

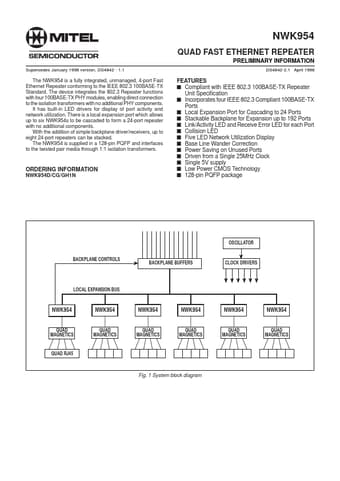

NWK954 Datasheet Preview Page 2 NWK954 Datasheet Preview Page 3
