NWK954CG

QUAD FAST ETHERNET REPEATER

NWK954CG Features

* s Compliant with IEEE 802.3 100BASE-TX Repeater Unit Specification s Incorporates four IEEE 802.3 Compliant 100BASE-TX Ports s Local Expansion Port for Cascading to 24 Ports s Stackable Backplane for Expansion up to 192 Ports s Link/Activity LED and Receive Error LED for each Port s Collision LED s

NWK954CG General Description

Overvlew The NWK954 is a mixed-signal CMOS device which integrates all of the functions required for an unmanaged 4port 100BASE TX repeater as defined in the IEEE 802.3 Standard. The device incorporates all of the necessary 100BASE-TX PHY functions to allow direct interfacing to a quad 1:1 magnetics.

NWK954CG Datasheet (176.85 KB)

Preview of NWK954CG PDF

Datasheet Details

Part number:

NWK954CG

Manufacturer:

Mitel Networks

File Size:

176.85 KB

Description:

Quad fast ethernet repeater.

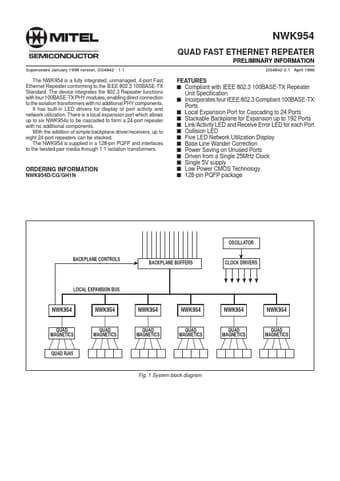

NWK954 QUAD FAST ETHERNET REPEATER PRELIMINARY INFORMATION Supersedes January 1998 version, DS4842 - 1.1 DS4842-2.1 April 1998 The NWK954 is a fully .
