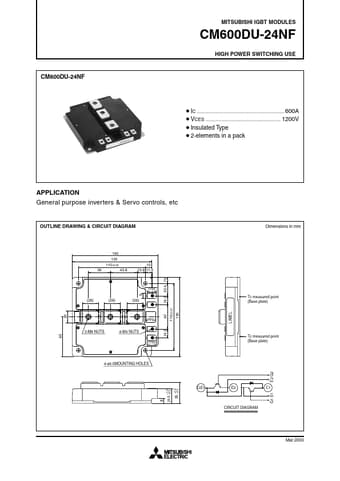

MITSUBISHI IGBT MODULES
CM600DU-24NF
HIGH POWER SWITCHING USE
CM600DU-24NF
¡IC ................................................................... 600A ¡VCES ......................................................... 1200V ¡Insulated Type ¡2-elements in a pack
APPLICATION General purpose inverters & Servo controls, etc
OUTLINE DRAWING & CIRCUIT DIAGRAM
Dimensions in mm
140 130 110±0.25 36 43.8 10 13.8 11.5
14.5 20.4 10
(15)
9
G2
(26)
(26)
(26)
E2
Tc measured point (Base plate)
110±0.25 LABEL 130
C2E
20
PPS
E1
3-M8 NUTS
65
4-M4 NUTS
G1
14.5
40
C1
E2
(15)
Tc measured point (Base plate)
4-φ6.5MOUNTING HOLES
E2 G2 24.5 +1.0 –0.5 35 +1.0 –0.5
C2E1
E2
C1
G1 E1
8
CIRCUIT DIAGRAM
Mar.
