CR04 LOW POWER USE GLASS PASSIVATION TYPE

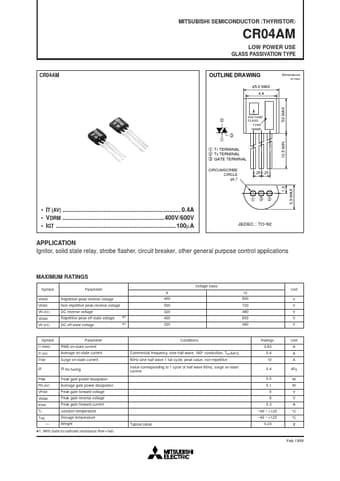

MITSUBISHI SEMICONDUCTOR 〈THYRISTOR 〉 CR04AM LOW POWER USE GLASS PASSIVATION TYPE CR04AM OUTLINE DRAWING φ5.0 MAX 4.4 Dimensions in mm 2 VOLTAGE CLASS TYPE NAME 3 1 T1 TERMINAL 2 T2 TERMINAL 3 GATE TERMINAL CIRCUMSCRIBE CIRCLE φ0.7 1.25 1.25 1.3 12.5 MIN 1 5.0 MAX 0.63 0.4 10 0.4 0.5 0.1 6 6 0.3 0.23 1 3 2 IT (AV) 0.4A VDRM 400V/600V IGT 100µ A JEDEC : TO-92 APPLICATION Ignitor, solid state relay, strobe flasher, circuit breaker, other general purp.
