CR05AS LOW POWER USE NON-INSULATED TYPE/ PLANAR PASSIVATION TYPE

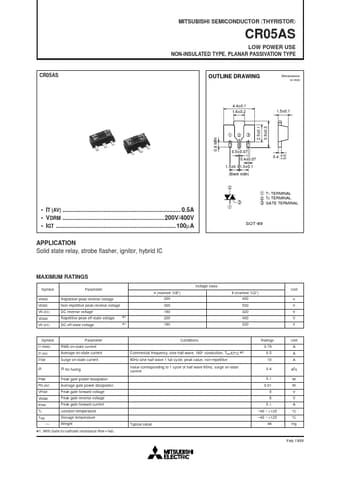

MITSUBISHI SEMICONDUCTOR 〈THYRISTOR 〉 CR05AS LOW POWER USE NON-INSULATED TYPE, PLANAR PASSIVATION TYPE CR05AS OUTLINE DRAWING Dimensions in mm 4.4±0.1 1.6±0.2 1.5±0.1 2.5±0.1 1 2 3 0.8 MIN 0.5±0.07 0.4±0.07 1.5±0.1 1.5±0.1 (Back side) 2 1 T1 TERMINAL 2 T2 TERMINAL 3 GATE TERMINAL 0.4 +0.03 0.05 3 IT (AV) 0.5A VDRM 200V/400V IGT 100µ A APPLICATION Solid state relay, strobe flasher, ignitor, hybrid IC 1 SOT-89 MAXIMUM RATINGS Symbol VRRM VR.
