CR056, CR022 Datasheet - Siliconix

CR056 Current Regulator Diodes

CR022 SERIES Current Regulator Diodes The CR022 Series is a family of precision current regulators designed for demanding appli.cations in test equipment and instrumentation. These devices combine the proven performance of a JFET with an integrated resistor to produce a single two-leaded device which is extremely simple to operate. With nominal current ranges from 0.22 mA to 5.30 mA, the CR022 Series will meet a wide array of design requirements. In addition to its two-lead construction, this s.

CR056 Features

* 10% current ranges, improved current control over wide temperature ranges, and Simple "floating" operation as no power supplies are required for biasing. Finally, its TO-18 hermetically sealed package is available with military processing per MIL-S-19500. (See Section 1.) For additional design infor

CR022-Siliconix.pdf

This datasheet PDF includes multiple part numbers: CR056, CR022. Please refer to the document for exact specifications by model.

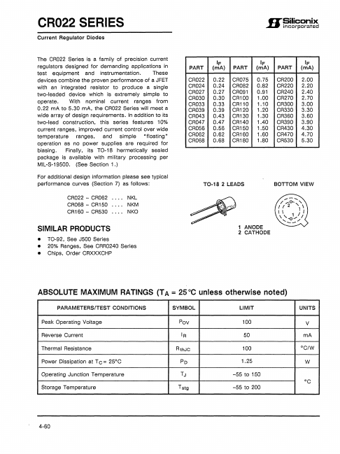

CR056 Datasheet Preview Page 2

Datasheet Details

Part number:

CR056, CR022

Manufacturer:

Siliconix

File Size:

130.69 KB

Description:

Current regulator diodes.

Note:

This datasheet PDF includes multiple part numbers: CR056, CR022.
Please refer to the document for exact specifications by model.
