CR10CY Datasheet - Mitsubishi Electric Semiconductor

CR10CY MEDIUM POWER/ INVERTER USE NON-INSULATED TYPE/ GLASS PASSIVATION TYPE

MITSUBISHI SEMICONDUCTOR 〈HIGH-SPEED SWITCHING THYRISTOR 〉 CR10CY MEDIUM POWER, INVERTER USE NON-INSULATED TYPE, GLASS PASSIVATION TYPE CR10CY OUTLINE DRAWING 2 3 14 Dimensions in mm 1 (16.2) φ2.0 MIN 10 MAX 19.5 MAX M6×1 1 3 MICA WASHER φ32×φ6×t0.25 SPACER φ9×φ6.2×t1 SOLDERLESS TERMINAL  TELEGRAPH WIRE   1.04~2.63mm2  11 MAX 1.9 MIN IT (AV) 10A VDRM 400V/600V IGT 40mA APPLICATION Inverter, DC choppers, DC static switches, pulse generator MAXIMUM RAT.

CR10CY_MitsubishiElectricSemiconductor.pdf

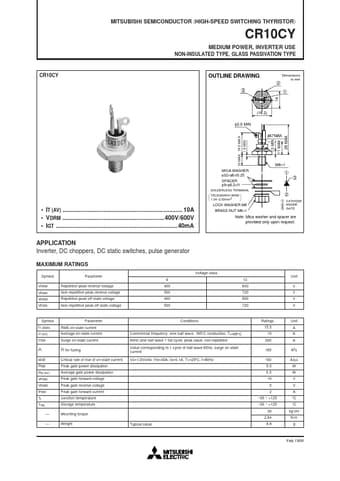

Preview of CR10CY PDF
CR10CY Datasheet Preview Page 2 CR10CY Datasheet Preview Page 3

Datasheet Details

Part number:

CR10CY

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

61.87 KB

Description:

Medium power/ inverter use non-insulated type/ glass passivation type.
