FK20KM-5 Power MOSFET

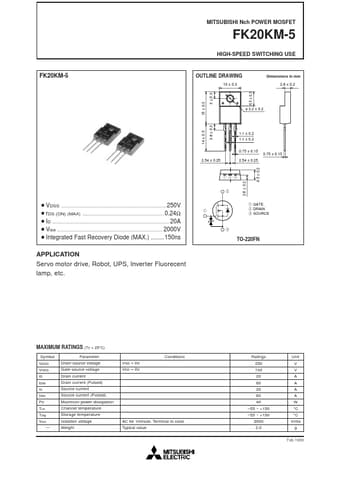

MITSUBISHI Nch POWER MOSFET FK20KM-5 HIGH-SPEED SWITCHING USE FK20KM-5 OUTLINE DRAWING 10 ± 0.3 6.5 ± 0.3 3 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 φ 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 4.5 ± 0.2 1 2 3 2.6 ± 0.2 w ¡VDSS 250V ¡rDS (ON) (MAX) 0.24Ω ¡ID 20A ¡Viso 2000V ¡Integrated Fast Recovery Diode (MAX.) 150ns q q GATE w DRAIN e SOURCE e TO-220FN APPLICATION Servo motor drive, Robot, UPS, Inverter Fluorecent .
