FU-319SPA-CV6, InGaAs APD PREAMP MODULE

TZ7-99-459B(2/4) MITSUBISHI (OPTICAL DEVICES) FU-319SPA-CV6 InGaAs APD PREAMP MODULE FOR THE 1.31 µm AND 1.55 µm WAVELENGTH RANGE .
FU-319SPA-CV6 is InGaAs avalanche photodiode module with GaAs preamplifier, designed for use in high-speed, long haul optical communication systems.

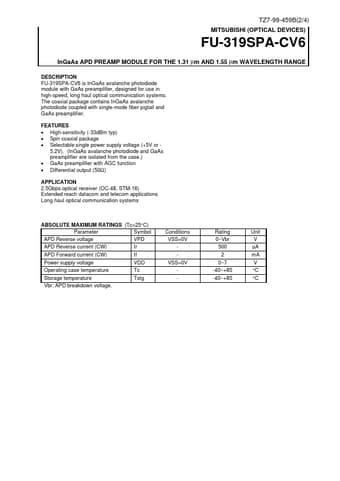

datasheet Preview Page 1 from Datasheet4u.com

FU-319SPA-CV6_MitsubishiElectricSemiconductor.pdf

FU-319SPA-CV6 Datasheet Preview — Preview of FU-319SPA-CV6 PDF

Datasheet Details

Part number:

FU-319SPA-CV6

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

48.64 KB

Description:

InGaAs APD PREAMP MODULE

Features

* High-sensitivity (-33dBm typ)
* 5pin coaxial package
* Selectable single power supply voltage (+5V or 5.2V). (InGaAs avalanche photodiode and GaAs preamplifier are isolated from the case. )
* GaAs preamplifier with AGC function
* Differential output (50Ω) APP

Applications

* Long haul optical communication systems ABSOLUTE MAXIMUM RATINGS (Tc=25°C) Parameter Symbol APD Reverse voltage VPD APD Reverse current (CW) Ir APD Forward current (CW) If Power supply voltage Operating case temperature Storage temperature Vbr: APD breakdown voltage. VDD Tc Tstg Conditions VSS=0V
