QM100CY-H HIGH POWER SWITCHING USE INSULATED TYPE

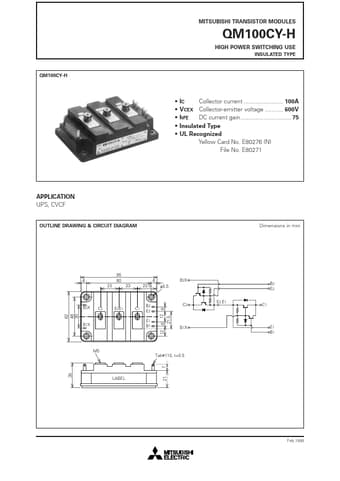

MITSUBISHI TRANSISTOR MODULES QM100CY-H HIGH POWER SWITCHING USE INSULATED TYPE QM100CY-H IC Collector current 100A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION UPS, CVCF OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 6 23 95 80 23 23.5 6 φ5.5 B2X B2 E2 E 2 E1 B1X E1 B1 6 12 6 21.5 B2X 62 48 30 C2 E2E1 C1 B2 E2 C2 C1 B1X .

QM100CY-H Datasheet (74.17 KB)

QM100CY-H Datasheet Preview — Preview of QM100CY-H PDF

Datasheet Details

Part number:

QM100CY-H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

74.17 KB

Description:

High power switching use insulated type.
