QM150DY-2HBK - Transistor Module

📥 Download Datasheet

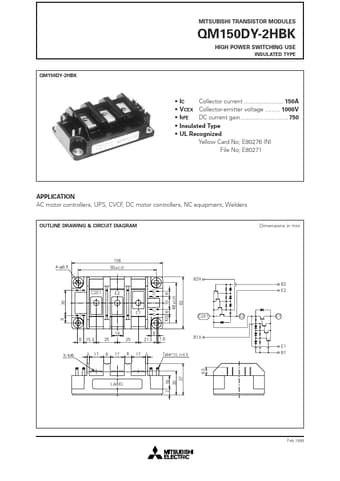

Datasheet preview – QM150DY-2HBK

Datasheet Details

Part number QM150DY-2HBK
Manufacturer Mitsubishi Electric Semiconductor
File Size 84.10 KB
Description Transistor Module
Datasheet download datasheet QM150DY-2HBK Datasheet
Additional preview pages of the QM150DY-2HBK datasheet.

📁 Similar Datasheet

  • QM150ExY-xx - Darlington Transistor Modules (Powerex)
  • QM15DX-24 - Intelligent Power Module (Mitsubishi Electric)
  • QM10N60F - MOSFETs (UBIQ)
  • QM12N65B - N-Ch 650V Fast Switching MOSFETs (UBIQ)
  • QM12N65F - N-Ch 650V Fast Switching MOSFETs (UBIQ)
  • QM12N65P - N-Ch 650V Fast Switching MOSFET (UBIQ)
  • QM12N70F - N-Ch 700V Fast Switching MOSFET (UBIQ)
  • QM14501 - BeiDou Low Noise Amplifier (Qorvo)
  • QM14N65F - N-Ch 650V Fast Switching MOSFET (UBIQ)
  • QM18N20D - N-Channel 200V Fast Switching MOSFET (UBIQ)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text
MITSUBISHI TRANSISTOR MODULES QM150DY-2HBK HIGH POWER SWITCHING USE INSULATED TYPE QM150DY-2HBK • • • • • IC Collector current ........................ 150A VCEX Collector-emitter voltage ......... 1000V hFE DC current gain............................. 750 Insulated Type UL Recognized Yellow Card No; E80276 (N) File No; E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 4–φ6.5 93±0.25 B2X C2E1 E2 E2 B2 6 B2 E2 48±0.25 62 B2X 30 B1 E1 C1 10.5 6 15 B1X 9 C2E1 E2 C1 14 8 15.3 25 25 21.5 8 1.8 B1X E1 B1 3–M6 3 17 8 17 8 17 3 Tab#110, t=0.5 16 LABEL 7 30 37 9.5 Feb.
