QM800HA-2HB Transistor

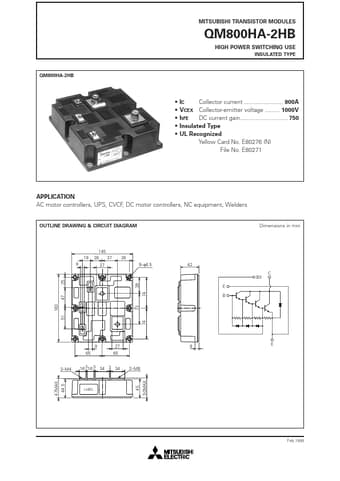

MITSUBISHI TRANSISTOR MODULES QM800HA-2HB HIGH POWER SWITCHING USE INSULATED TYPE QM800HA-2HB IC Collector current 800A VCEX Collector-emitter voltage 1000V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 145 19 9 28 27 37 28 8 φ6.5 42 BX C 25.
