QM80DY-3H Transistor

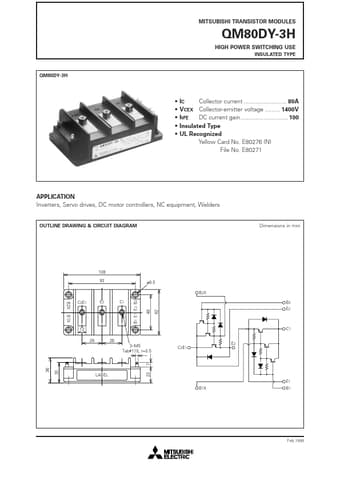

MITSUBISHI TRANSISTOR MODULES QM80DY-3H HIGH POWER SWITCHING USE INSULATED TYPE QM80DY-3H IC Collector current 80A VCEX Collector-emitter voltage 1400V hFE DC current gain 100 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 93 φ6.5 B2X C2E1 E2 C1 B1 E1 E2 B2 48 62 B2 E2 36 3.
