RD15HVF1 Datasheet, transistor equivalent, Mitsubishi Electric Semiconductor

RD15HVF1 Features

  • Transistor High power and High Gain: Pout>15 W, Gp>14 dB @Vds=12.5 V,f=175 MHz High Efficiency: 60 % (typ) on VHF Band Integrated gate protection diode APPLICATION For output stage of high power a

PDF File Details

Part number:

RD15HVF1

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

432.02kb

Download:

📄 Datasheet

Description:

Silicon mosfet power transistor. RD15HVF1 is a MOS FET type transistor specifically designed for VHF/UHF High power amplifiers applica -tions. OUTLINE DRAWING 9.1+/-

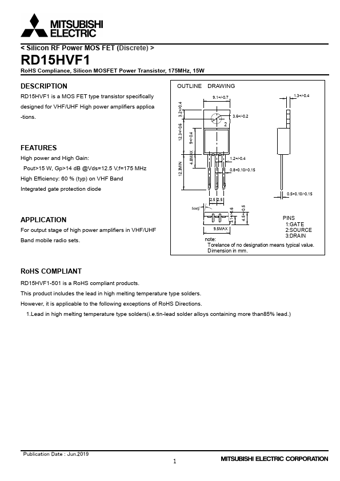

Datasheet Preview: RD15HVF1 📥 Download PDF (432.02kb)
Page 2 of RD15HVF1 Page 3 of RD15HVF1
