RM300HA-24F Diode-Module

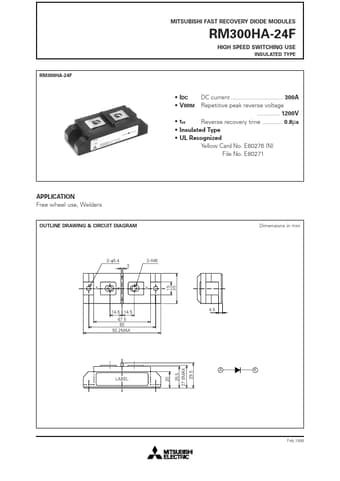

MITSUBISHI FAST RECOVERY DIODE MODULES RM300HA-24F HIGH SPEED SWITCHING USE INSULATED TYPE RM300HA-24F DC current 300A Repetitive peak reverse voltage 1200V trr Reverse recovery time 0.8µs Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 IDC VRRM APPLICATION Free wheel use, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 2 φ5.4 3 2 M6 A K 15 35 14.5 14.5 67.5 80 92.2MAX. 4.5 25.5.
