FM200TU-2A Datasheet - Mitsubishi Electric

FM200TU-2A HIGH POWER SWITCHING USE INSULATED PACKAGE

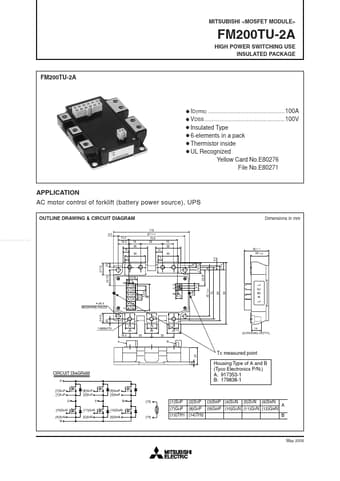

MITSUBISHI FM200TU-2A HIGH POWER SWITCHING USE INSULATED PACKAGE FM200TU-2A ID(rms) 100A VDSS 100V Insulated Type 6-elements in a pack Thermistor inside UL Recognized Yellow Card No.E80276 File No.E80271 APPLICATION AC motor control of forklift (battery power source), UPS OUTLINE DRAWING & CIRCUIT DIAGRAM 110 97 70.9 32 10 30 7 (6) (17.5) N P Dimensions in mm 6.5 www.DataSheet4U.com 15.2 16.5 10 16 36 16 36 35 30 6.5 26 7 (6) (14.

FM200TU-2A_MitsubishiElectric.pdf

Preview of FM200TU-2A PDF
FM200TU-2A Datasheet Preview Page 2 FM200TU-2A Datasheet Preview Page 3

Datasheet Details

Part number:

FM200TU-2A

Manufacturer:

Mitsubishi Electric

File Size:

134.23 KB

Description:

High power switching use insulated package.
