M54583FP

8 UNIT 400MA DARLINGTON TRANSISTOR ARRAY

M54583FP Features

* q High breakdown voltage (BVCEO ≥ 50V) q High-current driving (Ic(max) = 400mA) q Active L-level input q With input clamping diodes q Wide operating temperature range (Ta =

* 20 to +75 °C) IN7→ 7 IN8→ 8 GND 9 Outline 18P4G M54583FP APPLICATION Interfaces between microcomputers and high-vol

M54583FP General Description

M54583P and M54583FP are eight-circuit collector-currentsynchronized Darlington transistor arrays. The circuits are made of PNP and NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply. M54583P IN1→ 1 IN2→ 2 IN3→ 3 INPUT IN.

M54583FP Datasheet (118.03 KB)

Preview of M54583FP PDF

Datasheet Details

Part number:

M54583FP

Manufacturer:

Mitsubishi Electric

File Size:

118.03 KB

Description:

8 unit 400ma darlington transistor array.

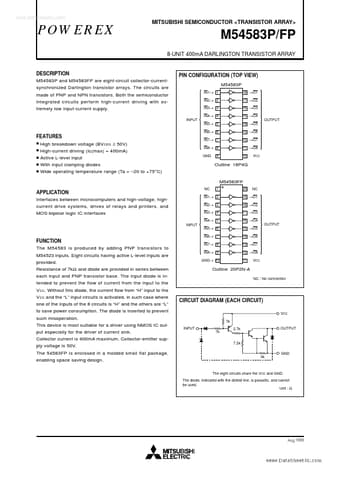

www.DataSheet4U.com POWEREX MITSUBISHI SEMICONDUCTOR M54583P/FP 8-UNIT 400mA DARLINGTON TRANSISTOR ARRAY PIN CONFIGURATION (TOP .
