M5L2764K

64K-Bit Erasable and Electrically Reprogrammable ROM

M5L2764K Features

* 8192 Word x 8-bit Organization

* Access Time M5L2764K-2 200 ns (Max) M5L2764K 250 ns (Max)

* Two Line Control OE, CE

* Low Power Current (Icc) Active 150 rnA (Max) Standby 35 rnA (Max)

* Single 5V Power Supply

* 3-State Output Buffer

M5L2764K General Description

The Mitsubishi M5L2764 K is a high-speed 65536-bit ultraviolet erasable and electrically reprogrammable read only memory. It is suitable for microprocessor programming applications where rapid turn-around is required. The M5L2764K is fabricated by N-channel double polysilicon gate technology and is .

M5L2764K Datasheet (363.83 KB)

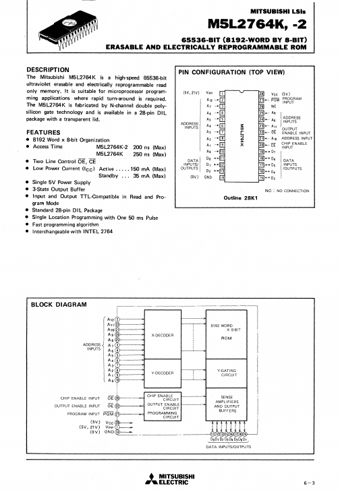

Preview of M5L2764K PDF

Datasheet Details

Part number:

M5L2764K

Manufacturer:

Mitsubishi Electric

File Size:

363.83 KB

Description:

64k-bit erasable and electrically reprogrammable rom.
