M5L27128K

128K-Bit Erasable and Electrically Reprogrammable ROM

M5L27128K Features

* 16384 word x 8 bit organization

* Access time M5L27128K-2 M5L27128K 200ns(max.) .250ns (max.)

* Two line control OE, CE

* Low power current (Icc): Active 100mA (max.) Standby 45mA (max.)

* Single 5V power supply

* 3-State output buffer

M5L27128K General Description

The Mitsubishi M5L27128K is a high-speed 131072-bit ultraviolet erasable and electrically reprogrammable read only memory. It is suitable for microprocessor programming applications where rapid turn-around is required. The M5L27128K is fabricated by N-channel double polysilicon gate technology and i.

M5L27128K Datasheet (421.53 KB)

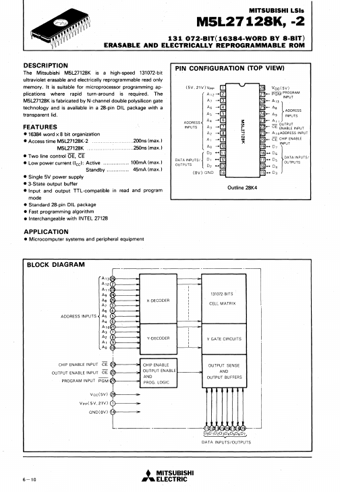

Preview of M5L27128K PDF

Datasheet Details

Part number:

M5L27128K

Manufacturer:

Mitsubishi

File Size:

421.53 KB

Description:

128k-bit erasable and electrically reprogrammable rom.
