M63802GP

(M63802xx) 7-UNIT 300mA TRANSISTOR ARRAY

Mitsubishi Electric

M63802GP Features

* Four package configurations (P, FP, GP and KP) q Medium breakdown voltage (BVCEO ≥ 35V) q Synchronizing current (IC(max) = 300mA) q With zener diodes q Low output saturation voltage q Wide operating temperature range (Ta=

* 40 to +85 °C) q GND 8 NC 16P4(P) 16P2N-A(FP) 16P2S-A(GP) Package t

M63802GP General Description

M63802P, M63802FP, M63802GP and M63802KP are seven-circuit Singe transistor arrays. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low inputcurrent supply. PIN CONFIGURATION IN1→ 1 IN2→ 2 IN3→ 3 INPUT IN4→ 4 IN5→ 5 IN6.

M63802GP Datasheet (85.85 KB)

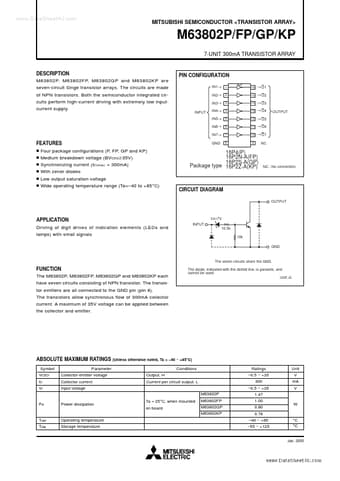

M63802GP Datasheet Preview — Preview of M63802GP PDF
