M63800FP Datasheet, Diode, Mitsubishi

M63800FP Features

  • Diode High breakdown voltage (BV CEO ≥ 50V) High-current driving (Io(max) =
      –500mA) With output clamping diodes Driving available with CMOS IC output of 6-16V or with TTL outp

PDF File Details

Part number:

M63800FP

Manufacturer:

Mitsubishi

File Size:

75.61kb

Download:

📄 Datasheet

Description:

7-unit 500ma source type darlington transistor array with clamp diode. M63800FP is a seven-circuit output-sourcing Darlington transistor array. The circuits are made of PNP and NPN transistors. This semic

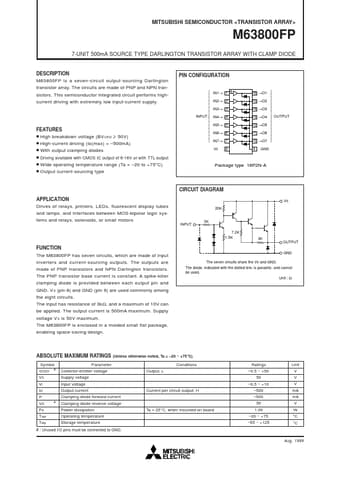

Datasheet Preview: M63800FP 📥 Download PDF (75.61kb)
