3802

SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

3802 Features

* Basic machine-language instructions 71

* The minimum instruction execution time 0.5 µs (at 8 MHz oscillation frequency)

* Memory size ROM 8 K to 32 K bytes RAM 384 to 1024 bytes

* P

3802 General Description

The 3802 group is the 8-bit microcomputer based on the 740 family core technology. The 3802 group is designed for controlling systems that require analog signal processing and include two serial I/O functions, A-D converters, and D-A converters. The various microcomputers in the 3802 group include v.

3802 Datasheet (664.59 KB)

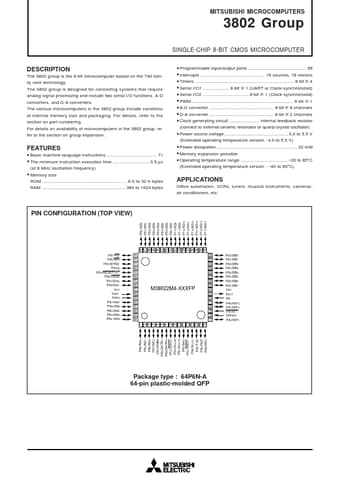

Preview of 3802 PDF

Datasheet Details

Part number:

3802

Manufacturer:

Mitsubishi

File Size:

664.59 KB

Description:

Single-chip 8-bit cmos microcomputer.
