TENTATIVE
All information in this technical data sheet is tentative and subject to change without notice.

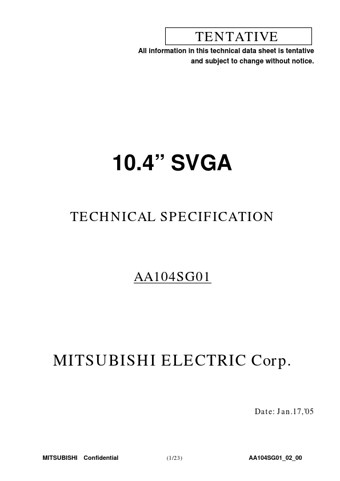

10.4” SVGA
TECHNICAL SPECIFICATION
AA104SG01
MITSUBISHI ELECTRIC Corp.
Date: Jan.17,’05
MITSUBISHI
Confidential
(1/23)
AA104SG01_02_00
CONTENTS
No. --1 2 3 4 5 6 7 8 9 10 11 COVER CONTENTS APPLICATION OVERVIEW ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS INTERFACE PIN CONNECTION INTERFACE TIMING BLOCK DIAGRAM MECHANICAL SPECIFICATION OPTICAL CHARACTERISTICS RELIABILITY TEST CONDITION HANDLING PRECAUTIONS FOR TFT-LCD MODULE Item Page 1 2 3 4 5 5, 6, 7 8, 9 10, 11, 12, 13, 14 15 16, 17 18, 19 20 21, 22, 23
MITSUBISHI
Confidential
(2/23)
AA104SG01_02_00
1. APPLICATION
This specification applies to color TFT-LCD module, AA104SG01.
AA104SG01 Datasheet
