AA104-73 - GaAs IC 1 Bit Digital Attenuator 32 dB 2.5 GHz

Datasheet Summary

Description

The AA104-73 is a 1 bit, GaAs IC FET digital attenuator in a low cost SOT-6 package.

This attenuator has up to 32 dB total attenuation.The attenuator requires two lines of voltage control.

Features

  • s 1 Bit Attenuation of 32 dB DC.
  • 1 GHz, 27 dB 1.
  • 2 GHz, 24 dB 2.
  • 2.5 dB s Combine with AA260-85 or AA101-80 for 63 dB 6 Bit Solution s Tune with One Capacitor and/or Resistor to Desired Operating Frequency and Attenuation s Ideal for Both IF and RF.

📥 Download Datasheet

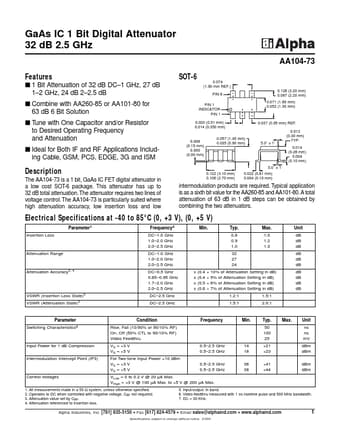

Datasheet preview – AA104-73

Datasheet Details

Part number AA104-73
Manufacturer Alpha Industries
File Size 67.08 KB
Description GaAs IC 1 Bit Digital Attenuator 32 dB 2.5 GHz
Datasheet download datasheet AA104-73 Datasheet
Additional preview pages of the AA104-73 datasheet.

📁 Similar Datasheet

Other Datasheets by Alpha Industries
  • AA100-59 - GaAs IC 3 Bit Digital Attenuator 4 dB LSB Positive Control 0.75-2 GHz
  • AA101-80 - GaAs IC 5 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-2.5 GHz
  • AA102-80 - GaAs IC 5 Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5-2.5 GHz
  • AA103-72 - GaAs IC 1 Bit Digital Attenuator 10 dB LSB DC-2.5 GHz
  • AA105-86 - GaAs IC 4 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-3.0 GHz
  • AA106-86 - GaAs IC 5 Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5-2.0 GHz
  • AA107-310 - GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver DC-2 GHz
  • AA109-310 - GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver 0.5-2.5 GHz

Full PDF Text Transcription

Click to expand full text
GaAs IC 1 Bit Digital Attenuator 32 dB 2.5 GHz AA104-73 Features s 1 Bit Attenuation of 32 dB DC–1 GHz, 27 dB 1–2 GHz, 24 dB 2–2.5 dB s Combine with AA260-85 or AA101-80 for 63 dB 6 Bit Solution s Tune with One Capacitor and/or Resistor to Desired Operating Frequency and Attenuation s Ideal for Both IF and RF Applications Including Cable, GSM, PCS, EDGE, 3G and ISM SOT-6 0.074 (1.90 mm REF.) PIN 6 PIN 1 INDICATOR PIN 1 0.126 (3.20 mm) 0.087 (2.20 mm) 0.071 (1.80 mm) 0.052 (1.30 mm) 0.020 (0.51 mm) 0.014 (0.350 mm) 0.057 (1.45 mm) 0.035 (0.90 mm) 0.037 (0.95 mm) REF. 0.012 (0.30 mm) TYP. 0.014 (0.26 mm) 0.004 (0.10 mm) 5.0˚ ± 1˚ 0.006 (0.15 mm) 0.000 (0.00 mm) 5.0˚ ± 1˚ Description The AA104-73 is a 1 bit, GaAs IC FET digital attenuator in a low cost SOT-6 package.
