AA105-86 GaAs IC 4 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-3.0 GHz

Alpha Industries

Description

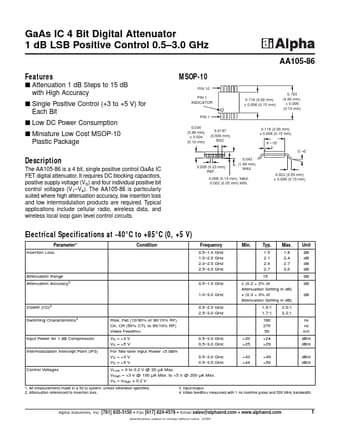

GaAs IC 4 Bit Digital Attenuator 1 dB LSB Positive Control 0.5 *3.0 GHz AA105-86 .
The AA105-86 is a 4 bit, single positive control GaAs IC FET digital attenuator.

📥 Download Datasheet

AA105-86 Datasheet Preview — Preview of AA105-86 PDF

Datasheet Specifications

Part number: AA105-86
Manufacturer: Alpha Industries
File Size: 400.38 KB
Datasheet: AA105-86_AlphaIndustries.pdf
Description: GaAs IC 4 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-3.0 GHz

Features

* s Attenuation 1 dB Steps to 15 dB with High Accuracy s Single Positive Control (+3 to +5 V) for Each Bit s Low DC Power Consumption s Miniature Low Cost MSOP-10 Plastic Package MSOP-10 PIN 10 PIN 1 INDICATOR 0.118 (3.00 mm) ± 0.006 (0.15 mm) 0.193 (4.90 mm) ± 0.006 (0.15 mm) PIN 1 0.034 (0.86 mm)

Applications

* include cellular radio, wireless data, and wireless local loop gain level control circuits. 0.009 (0.23 mm) REF. 0.043 (1.09 mm) MAX. 0.022 (0.55 mm) ± 0.006 (0.15 mm) 0.006 (0.15 mm) MAX. 0.002 (0.05 mm) MIN. Electrical Specifications at -40°C to +85°C (0, +5 V) Parameter1 Insertion Loss Conditi
