AA103-72 - GaAs IC 1 Bit Digital Attenuator 10 dB LSB DC-2.5 GHz

Datasheet Summary

Description

The AA103-72 is a 1 bit GaAs IC FET digital attenuator in a low cost package.

This attenuator has an LSB of 10 dB.

The AA103-72 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.

Features

  • s Attenuation Cutback of 10 dB s Single Positive 3 V Control s Low Loss s Low Cost SOT-5 Plastic Package PIN 1 0.020 (0.51 mm) 0.014 (0.35 mm) 0.012 (0.30 mm) 0.000 (0.00 mm) MIN. 0.064 (1.63 mm) 0.035 (0.90 mm) SOT-5 0.074 (1.90 mm) REF. 0.069 (1.75 mm) 0.052 (1.30 mm) 0.118 (3.00 mm) 0.087 (2.20 mm).

📥 Download Datasheet

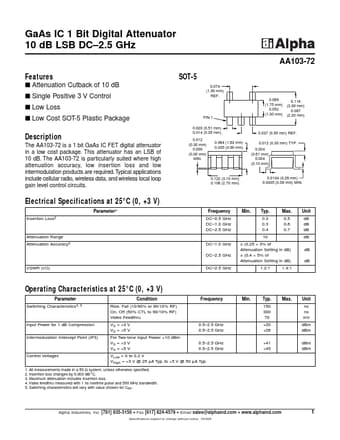

Datasheet preview – AA103-72

Datasheet Details

Part number AA103-72
Manufacturer Alpha Industries
File Size 24.82 KB
Description GaAs IC 1 Bit Digital Attenuator 10 dB LSB DC-2.5 GHz
Datasheet download datasheet AA103-72 Datasheet
Additional preview pages of the AA103-72 datasheet.

📁 Similar Datasheet

  • AA103 - SCRs .5 A/ Planar (Microsemi Corporation)
  • AA100 - SCRs .5 A/ Planar (Microsemi Corporation)
  • AA101 - SCRs .5 A/ Planar (Microsemi Corporation)
  • AA1010SEC28 - XPower (Kingbright Corporation)
  • AA102 - SCRs .5 A/ Planar (Microsemi Corporation)
  • AA104 - SCRs .5 A/ Planar (Microsemi Corporation)
  • AA104SG01 - SVGA LCD (Mitsubishi)
  • AA104SG02 - SVGA LCD (Mitsubishi)
  • AA104SH02 - SVGA LCD (Mitsubishi)
  • AA104SH02-T1 - SVGA LCD (Mitsubishi)
Other Datasheets by Alpha Industries
  • AA100-59 - GaAs IC 3 Bit Digital Attenuator 4 dB LSB Positive Control 0.75-2 GHz
  • AA101-80 - GaAs IC 5 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-2.5 GHz
  • AA102-80 - GaAs IC 5 Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5-2.5 GHz
  • AA104-73 - GaAs IC 1 Bit Digital Attenuator 32 dB 2.5 GHz
  • AA105-86 - GaAs IC 4 Bit Digital Attenuator 1 dB LSB Positive Control 0.5-3.0 GHz
  • AA106-86 - GaAs IC 5 Bit Digital Attenuator 0.5 dB LSB Positive Control 0.5-2.0 GHz
  • AA107-310 - GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver DC-2 GHz
  • AA109-310 - GaAs IC 5 Bit Digital Attenuator With Serial-to-Parallel Driver 0.5-2.5 GHz

Full PDF Text Transcription

Click to expand full text
GaAs IC 1 Bit Digital Attenuator 10 dB LSB DC–2.5 GHz AA103-72 Features s Attenuation Cutback of 10 dB s Single Positive 3 V Control s Low Loss s Low Cost SOT-5 Plastic Package PIN 1 0.020 (0.51 mm) 0.014 (0.35 mm) 0.012 (0.30 mm) 0.000 (0.00 mm) MIN. 0.064 (1.63 mm) 0.035 (0.90 mm) SOT-5 0.074 (1.90 mm) REF. 0.069 (1.75 mm) 0.052 (1.30 mm) 0.118 (3.00 mm) 0.087 (2.20 mm) Description The AA103-72 is a 1 bit GaAs IC FET digital attenuator in a low cost package. This attenuator has an LSB of 10 dB. The AA103-72 is particularly suited where high attenuation accuracy, low insertion loss and low intermodulation products are required. Typical applications include cellular radio, wireless data, and wireless local loop gain level control circuits. 0.037 (0.95 mm) REF. 0.012 (0.30 mm) TYP. 0.
