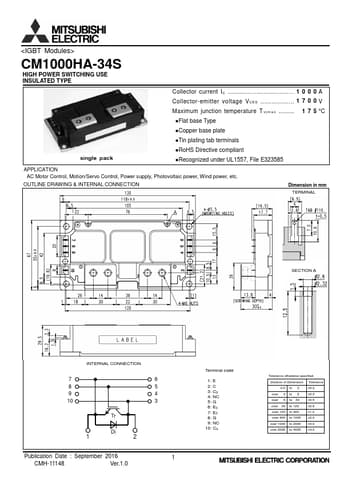

CM1000HA-34S HIGH POWER SWITCHING USE INSULATED TYPE Collector current IC .............…..................… 1 0 0 0 A Collector-emitter voltage VCES .................. 1 7 0 0 V Maximum junction temperature T v j m a x ......... 1 7 5 °C ●Flat base Type ●Copper base plate ●Tin plating tab terminals single pack ●RoHS Directive compliant ●Recognized under UL1557, File E323585 APPLICATION AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power, etc. OUTLINE DRAWING & INTERNAL CONNECTION Dimension in mm TERMINAL SECTION A INTERNAL CONNECTION 7 6 8 5 9 4 10 3 Tr Di 1 2 Publication Date : September 2016 1 CMH-11148 Ver.1.
