DA53 Datasheet - Mitsubishi

DA53 For Power Lines

SURGE ABSORBER DA53 Series Part number system 622 Vs DC Spark-over voltage (Vs) M DC Spark-over voltage tolerance 2 3 The first two digits are significant, and the third is number of zeros. 622 Ex.) 622 means: 62 102=6200v M 20 Dimensions 5.3 0.5 mm Unit mm 0.50 0.05 For Power Lines DA53 Series has a micro gap cut to an accuracy of several tens of microns in width for rapid response against induced lightning and electrostatic discharges. Allows performing the AC withstanding voltage tes.

DA53 Features

* Small size. (5.3mm Length 10mm)

* Allows performing the AC withstanding voltage test.

* Used to protect power supplies.

* Quick response for surge voltage, and low limiting voltage.

* Small capacitance and excellent insulation resistance.

* Stable for repeated discharge test con

DA53 Datasheet (53.08 KB)

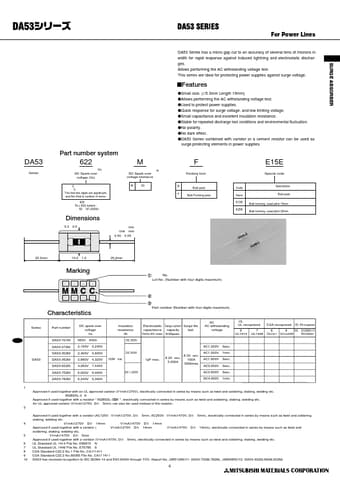

DA53 Datasheet Preview — Preview of DA53 PDF

Datasheet Details

Part number:

DA53

Manufacturer:

Mitsubishi

File Size:

53.08 KB

Description:

For power lines.
