M2S12D20TP

512M Double Data Rate Synchronous DRAM

M2S12D20TP Features

* - Vdd=Vddq=2.5V+0.2V - Double data rate architecture; two data transfers per clock cycle - Bidirectional, data strobe (DQS) is transmitted/received with data - Differential clock inputs (CLK and /CLK) - DLL aligns DQ and DQS transitions - Commands are entered on each positive CLK edge; - data and da

M2S12D20TP General Description

M2S12D20TP is a 4-bank x 33,554,432-word x 4-bit, M2S12D30TP is a 4-bank x 16,777,216-word x 8-bit, double data rate synchronous DRAM, with SSTL_2 interface. All control and address signals are referenced to the rising edge of CLK. Input data is registered on both edges of data strobes, and output d.

M2S12D20TP Datasheet (754.04 KB)

Preview of M2S12D20TP PDF

Datasheet Details

Part number:

M2S12D20TP

Manufacturer:

Mitsubishi

File Size:

754.04 KB

Description:

512m double data rate synchronous dram.

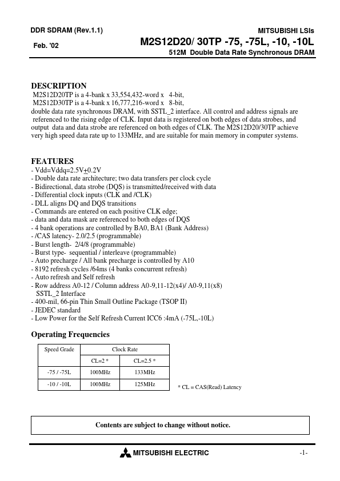

DDR SDRAM (Rev.1.1) Feb.ELECTRIC '02 MITSUBISHI MITSUBISHI LSIs M2S12D20/ 30TP -75, -75L, -10, -10L 512M Double Data Rate Synchronous DRAM DESCRIPT.
