M2S56D40ATP75A, M2S - 256M Double Data Rate Synchronous DRAM

Mitsubishi

The M2S56D40ATP75A by Mitsubishi is a 256M Double Data Rate Synchronous DRAM. Below is the official datasheet preview.

📥 Download Datasheet

M2S56D40ATP75A 256M Double Data Rate Synchronous DRAM by Mitsubishi - Datasheet Preview — Official preview page of the **M2S56D40ATP75A** 256M Double Data Rate Synchronous DRAM datasheet (Mitsubishi).

Datasheet Details

Part number	M2S56D40ATP75A, M2S
Manufacturer	Mitsubishi
File Size	768.53 KB
Description	256M Double Data Rate Synchronous DRAM
Datasheet	M2S-56D.pdf
Note	This datasheet PDF includes multiple part numbers: M2S56D40ATP75A, M2S. Please refer to the document for exact specifications by model.
Additional preview pages of the M2S56D40ATP75A datasheet.

M2S56D40ATP75A Product details

Description

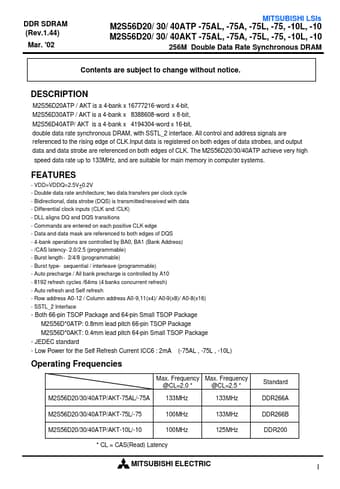

M2S56D20ATP / AKT is a 4-bank x 16777216-word x 4-bit, M2S56D30ATP / AKT is a 4-bank x 8388608-word x 8-bit, M2S56D40ATP/ AKT is a 4-bank x 4194304-word x 16-bit, double data rate synchronous DRAM, with SSTL_2 interface.

Features

- VDD=VDDQ=2.5V+0.2V - Double data rate architecture; two data transfers per clock cycle - Bidirectional, data strobe (DQS) is transmitted/received with data - Differential clock inputs (CLK and /CLK) - DLL aligns DQ and DQS transitions - Commands are entered on each positive CLK edge - Data and data mask are referenced to both edges of DQS - 4-bank operations are controlled by BA0, BA1 (Bank Address) - /CAS latency- 2.0/2.5 (programmable) - Burst length- 2/4/8 (programmable) - Burst type- seque.
