M37102E8-XXXSP Datasheet PDF (SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER)

M37102E8-XXXSP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Description

The M37102E8-XXXSP/FP is a single-chip microcomputer designed with CMOS silicon gate technology.

It is housed in a 64-pin shrink plastic molded DIP or an 80-pin plastic molded QFP.

Features

of this chip are similar to those of the M37102M8-XXXSP/FP except that this chip has a 16384 bytes PROM built in. This single-chip microcomputer is useful for the high-tech channel selection system for TVs. In addition to its simple instruction sets, the PROM, RAM, and 1/0 addresses are placed on the same memory map to enable easy programming. Since general purpose PROM writers can be used for the built-in PROM, this chip is suitable for small quantity production runs. The differences between th.

Datasheet Details

Part number	M37102E8-XXXSP
Manufacturer	Mitsubishi
File Size	707.74 KB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M37102E8-XXXSP Datasheet
Additional preview pages of the M37102E8-XXXSP datasheet.

📁 Similar Datasheet

M3710A - ON/OFF SIREN (ETC)

M37150EFFP - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150M6 - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150M8 - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150MA - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150MC - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150MF - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37151EFFP - (M37151xx) SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37151M6 - (M37151xx) SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37151M8 - (M37151xx) SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

Full PDF Text Transcription

Click to expand full text

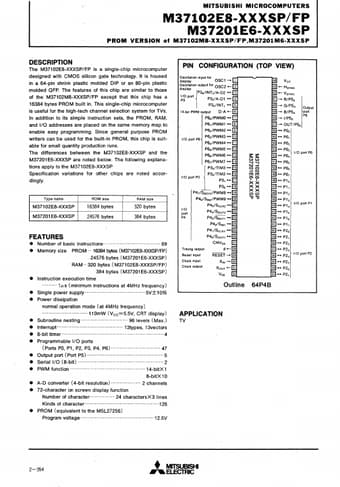

MITSUBISHI MICROCOMPUTERS M37102E8-XXXSP/FP M37201E6-XXXSP PROM VERSION .of M37102M8-XXXSP/FP,M37201M6-XXXSP DESCRIPTION The M37102E8-XXXSP/FP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 64-pin shrink plastic molded DIP or an 80-pin plastic molded QFP. The features of this chip are similar to those of the M37102M8-XXXSP/FP except that this chip has a 16384 bytes PROM built in. This single-chip microcomputer is useful for the high-tech channel selection system for TVs. In addition to its simple instruction sets, the PROM, RAM, and 1/0 addresses are placed on the same memory map to enable easy programming. Since general purpose PROM writers can be used for the built-in PROM, this chip is suitable for small quantity production runs.
