M37271EFSP

SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

M37271EFSP Features

* of the M37271EF-XXXSP and the M37271EFSP are similar to those of the M37271MF-XXXSP except that these chips have a built-in PROM which can be written electrically. FEATURES

* Number of basic instructions 71

* Memory size ROM 60 K bytes RAM

M37271EFSP General Description

The M37271MF-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 52-pin shrink plastic molded DIP. In addition to their simple instruction sets, the ROM, RAM and I/O addresses are placed on the same memory map to enable easy programming. The M37271MF-XX.

M37271EFSP Datasheet (1.31 MB)

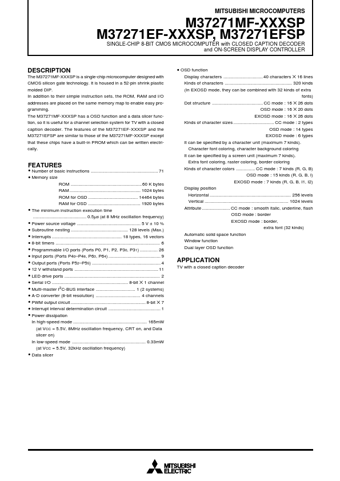

Preview of M37271EFSP PDF

Datasheet Details

Part number:

M37271EFSP

Manufacturer:

Mitsubishi

File Size:

1.31 MB

Description:

Single-chip 8-bit cmos microcomputer.
MITSUBISHI MICROCOMPUTERS M37271MF-XXXSP M37271EF-XXXSP, M37271EFSP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER with CLOSED CAPTION DECODER and ON-SCREEN DIS.
