M37274MA-xxxSP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

The M37274MA-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a 52-pin shrink plastic molded DIP. In addition to their simple instruction sets, the ROM, RAM and I/O addresses are placed on the same memory map to enable easy programming. The M37274MA-XX.

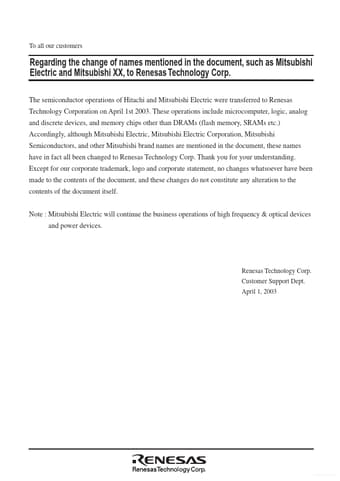

To all our customers Regarding the change of names mentioned in the document, such as Mitsubishi Electric and Mitsubishi XX, to Renesas Technology Corp. The semiconductor operations of Hitachi and Mitsubishi Electric were transferred to Renesas Technology Corporation on April 1st 2003. These operations include microcomputer, logic, analog and discrete devices, and memory chips other than DRAMs (flash memory, SRAMs etc.) Accordingly, although Mitsubishi Electric, Mitsubishi Electric Corporation,.

M37274MA-xxxSP Features

* Number of basic instructions 71

* Memory size ROM 40 K bytes RAM 768 bytes ROM correction memory 64 bytes ROM for OSD 11072 bytes RAM for OSD 1296 bytes Minimum instruction execution time 0.5 µs (at 8 MHz oscillation frequency) Power source voltage 5 V ± 10 % Subroutine nes
