M37221EAFP - Single-Chip 8-Bit CMOS Microcomputer

Product Overview

Renesas

Part number	M37221EAFP
Manufacturer	Renesas
File Size	1.11 MB
Description	Single-Chip 8-Bit CMOS Microcomputer
Datasheet	M37221EAFP Datasheet
Note	This datasheet PDF includes multiple part numbers: M37221EAFP, M37221M8H. Please refer to the document for exact specifications by model.

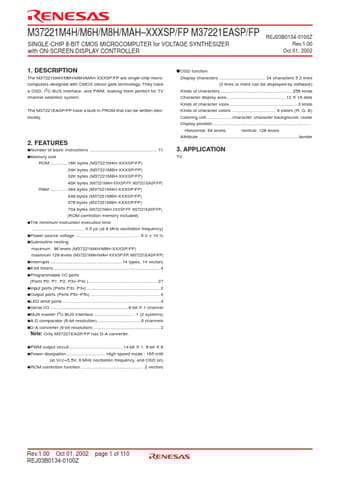

Additional preview pages of the M37221EAFP datasheet.

The M37221M4H/M6H/M8H/MAH-XXXSP/FP are single-chip microcomputers designed with CMOS silicon gate technology.

Number of basic instructions 71.
Memory size ROM 16K bytes (M37221M4H-XXXSP/FP) 24K bytes (M37221M6H-XXXSP/FP) 32K bytes (M37221M8H-XXXSP/FP) 40K bytes (M37221MAH-XXXSP/FP, M37221EASP/FP) RAM 384 bytes (M37221M4H-XXXSP/FP) 448 bytes (M37221M6H-XXXSP/FP) 576 bytes (M37221M8H-XXXSP/FP) 704 bytes (M37221MAH-XXXSP/FP, M37221EASP/FP) (ROM correction memory included).
The minimum instruction execution time.
