M37221M4H-XXXFP, M37221M8H, Single-Chip 8-Bit CMOS Microcomputer

M37221M4H/M6H/M8H/MAH *XXXSP/FP M37221EASP/FP REJ03B0134-0100Z SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER for VOLTAGE SYNTHESIZER Rev.1.00 with ON.
The M37221M4H/M6H/M8H/MAH-XXXSP/FP are single-chip microcomputers designed with CMOS silicon gate technology.

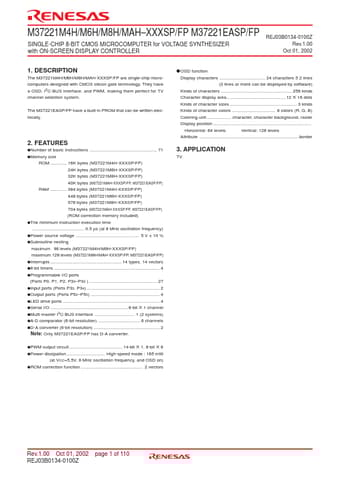

datasheet Preview Page 1 from Datasheet4u.com

M37221M8H_RenesasTechnology.pdf

M37221M4H-XXXFP Datasheet Preview — This datasheet PDF includes multiple part numbers: M37221M4H-XXXFP, M37221M8H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M37221M4H-XXXFP, M37221M8H

Manufacturer:

Renesas ↗

File Size:

1.11 MB

Description:

Single-Chip 8-Bit CMOS Microcomputer

Note:

This datasheet PDF includes multiple part numbers: M37221M4H-XXXFP, M37221M8H.
Please refer to the document for exact specifications by model.

Features

* Number of basic instructions 71
* Memory size ROM 16K bytes (M37221M4H-XXXSP/FP) 24K bytes (M37221M6H-XXXSP/FP) 32K bytes (M37221M8H-XXXSP/FP) 40K bytes (M37221MAH-XXXSP/FP, M37221EASP/FP) RAM 384 bytes (M37221M4H-XXXSP/FP) 448 bytes (M37221M6H-XXXSP/FP) 576 bytes (M37221M8H-XXXSP/FP) 704
