M38002E2-XXXFP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Product Overview

Mitsubishi

📥 Download Datasheet

M38002E2-XXXFP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER by Mitsubishi - Datasheet Preview — Datasheet preview – M38002E2-XXXFP

Datasheet Details

Part number	M38002E2-XXXFP
Manufacturer	Mitsubishi
File Size	1.83 MB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M38002E2-XXXFP Datasheet
Note	This datasheet PDF includes multiple part numbers: M38002E2-XXXFP, M3800x. Please refer to the document for exact specifications by model.

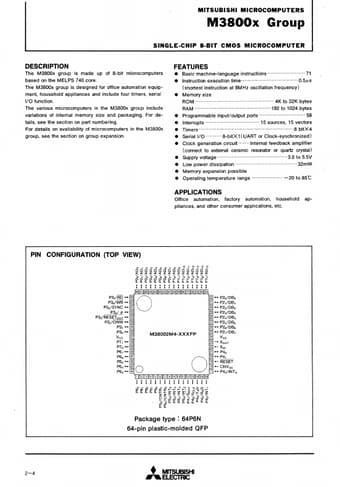

Additional preview pages of the M38002E2-XXXFP datasheet.

Product details

Description

The M3800x group is made up of 8-bit microcomputers based on the MELPS 740 core.

Features

Basic machine-language instructions 71.
Instruction execution time.
0.5,us (shortest instruction at 8M Hz oscillation frequency).
Memory size ROM 4K to 32K bytes RAM '192 to 1024 bytes.
Programmable input/output ports 58.
Interrup.
