M38034M4-XXXHP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Product Overview

Renesas

📥 Download Datasheet

M38034M4-XXXHP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER by Renesas - Datasheet Preview — Datasheet preview – M38034M4-XXXHP

Datasheet Details

Part number	M38034M4-XXXHP
Manufacturer	Renesas
File Size	1.78 MB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M38034M4-XXXHP Datasheet
Note	This datasheet PDF includes multiple part numbers: M38034M4-XXXHP, M38034M4-XXXSP. Please refer to the document for exact specifications by model.

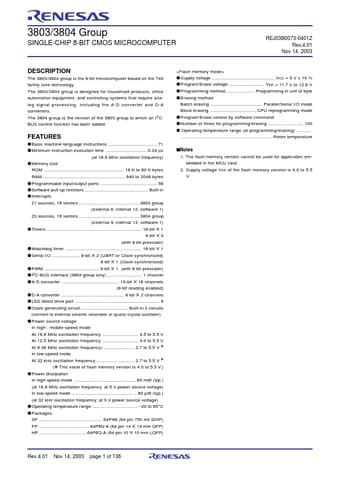

Additional preview pages of the M38034M4-XXXHP datasheet.

Product details

Description

The 3803/3804 group is the 8-bit microcomputer based on the 740 family core technology.

Features

qBasic machine-language instructions 71 qMinimum instruction execution time 0.24 µs (at 16.8 MHz oscillation frequency) qMemory size ROM 16 K to 60 K bytes RAM 640 to 2048 bytes qProgrammable input/output ports 56 qSoftware pull-up resistors.
