M3806x - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Mitsubishi

The M3806x by Mitsubishi is a SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER. Below is the official datasheet preview.

📥 Download Datasheet

M3806x SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER by Mitsubishi - Datasheet Preview — Official preview page of the M3806x SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER datasheet (Mitsubishi).

Datasheet Details

Part number	M3806x
Manufacturer	Mitsubishi
File Size	2.21 MB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M3806x-Mitsubishi.pdf

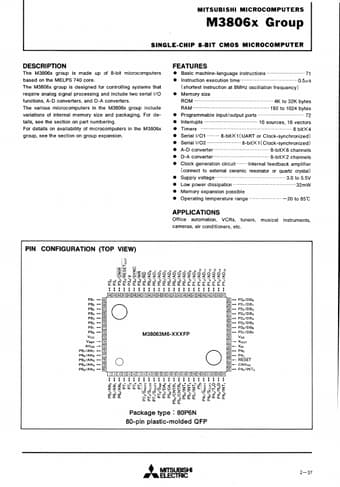

Additional preview pages of the M3806x datasheet.

M3806x Product details

Description

The M3806x group is made up of 8-bit microcomputers based on the MELPS 740 core.

Features

Basic machine-language instructions.
71.
Instruction execution time.
0.5J. ls (shortest instruction at 8MHz oscillation frequency).
Memory size ROM 4K to 32K bytes RAM.
