M38102E5SS

Single-Chip 8-Bit CMOS Microcomputer

M38102E5SS Features

* Basic machine-language instructions

* 71

* Instruction execution time

* .. 0.95,us (shortest instruction at 4.19MHz oscillation frequency)

* Memory size ROM 4K to 32K bytes RAM '192 to 1024 bytes PIN CONFIGURATION (TOP VIEW)

* Programmable input/output p

M38102E5SS General Description

The M3810x group is made up of 8-bit microcomputers based on the MELPS 740 cqre. The M3810x group is designed mainly for VCR control, and include four 8-bit timers, a PWM function, and a 4-bit c'omparator circuit. T~e various microcomputers in the M3810x group include variations of internal memory s.

M38102E5SS Datasheet (1.90 MB)

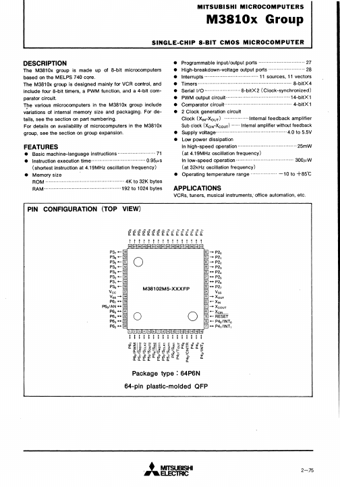

Preview of M38102E5SS PDF

Datasheet Details

Part number:

M38102E5SS

Manufacturer:

Mitsubishi

File Size:

1.90 MB

Description:

Single-chip 8-bit cmos microcomputer.
