M38503M2H-XXXSP, M38503M2H-XXXFP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Mitsubishi

📥 Download Datasheet

M38503M2H-XXXSP Datasheet Preview — This datasheet PDF includes multiple part numbers: M38503M2H-XXXSP, M38503M2H-XXXFP. Please refer to the document for exact specifications by model.

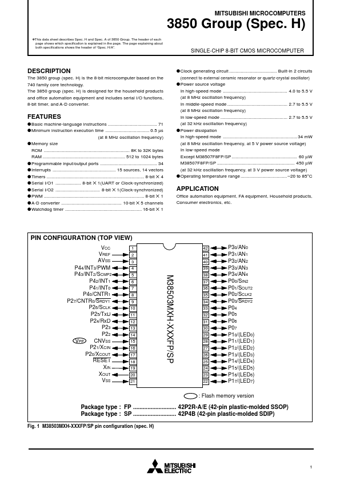

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	M38503M2H-XXXSP, M38503M2H-XXXFP
Manufacturer	Mitsubishi
File Size	1.51 MB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M38503M2H-XXXFP_Mitsubishi.pdf
Note	This datasheet PDF includes multiple part numbers: M38503M2H-XXXSP, M38503M2H-XXXFP. Please refer to the document for exact specifications by model.

M38503M2H-XXXSP Product details

Description

The 3850 group (spec.

Features

q Basic machine-language instructions 71 q Minimum instruction execution time 0.5 µs (at 8 MHz oscillation frequency) q Memory size ROM 8K to 32K bytes RAM 512 to 1024 bytes q Programmable input/output ports 34 q Interrupts 15 sources, 14 vectors q Timers 8-bit ✕ 4 q Serial I/O1 8-bit ✕ 1(UART or Clock-synchronized) q Serial I/O2 8-bit ✕ 1(Clock-synchronized) q PWM 8-bit ✕ 1 q A-D converter 10-bit ✕ 5 channels q Watchdog timer 16-bit ✕ 1 q Clock generating circuit Built-in 2 circui.
