M38510F2-SP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Renesas

Datasheet Details

Part number	M38510F2-SP
Manufacturer	Renesas ↗
File Size	1.19 MB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M38510F2-SP_Renesas.pdf

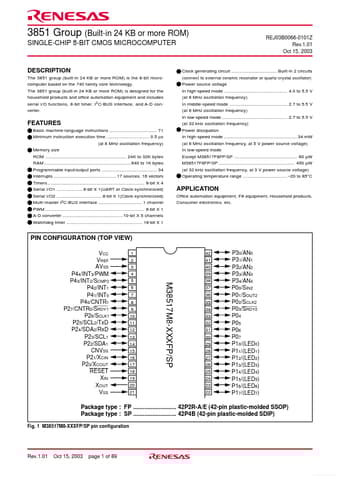

The 3851 group (built-in 24 KB or more ROM) is the 8-bit microcomputer based on the 740 family core technology.

Basic machine-language instructions 71 Minimum instruction execution time 0.5 µs (at 8 MHz oscillation frequency) Memory size ROM 24K to 32K bytes RAM 640 to 1K bytes Programmable input/output ports 34 Interrupts 17 sources, 16 vectors Timers 8-bit X 4 Serial I/O1 8-bit X 1(UART or Clock-synchronized) Serial I/O2 8-bit X 1(Clock-synchronized) Multi-master I2C-BUS interface 1 channel PWM 8-bit X 1 A-D converter 10-bit X 5 channels Watchdog timer 16-bit X 1 Clock generating circuit.
