M5109P Datasheet, Amplifier, Mitsubishi

M5109P Features

• Amplifier
• Two differential amplifiers with closely matched charac
• teristics.
• Small input offset voltage 5mV (max.)
• Small input offset current 2JJ.A (max.)

PDF File Details

Part number:

M5109P

Manufacturer:

Mitsubishi

File Size:

114.08kb

Download:

📄 Datasheet

Description:

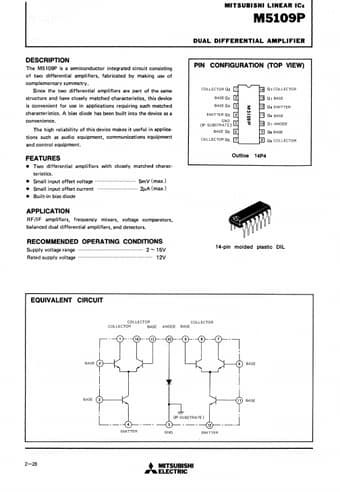

Dual differential amplifier. The M5109P is a semiconductor integrated circuit consisting of two differential amplifiers, fabricated by making use of complementary

M5109P Application

• Applications requiring such matched characteristics. A bias diode has been built into the device as a convenience. The high reliability of this devi

TAGS

M5109P

Mitsubishi
