M51133P - STEREO ELECTRIC VOLUME/BALANCE CONTROL

Datasheet Summary

Description

The M51133P is a semiconductor integrated circuit consisting of dual electronic volume, balance circuit for use in Hi-Fi audio, and by DC voltage control system, it is very easy to design the PCB board layout.

Features

  • Low distortion 0.006%( typ. ).
  • Low noise 5J1Vrms(typ. ) (JIS-A).
  • High attenuation.
  • .
  • l00dB(typ. ) (JIS-A).

📥 Download Datasheet

Datasheet preview – M51133P

Datasheet Details

Part number M51133P
Manufacturer Mitsubishi
File Size 202.79 KB
Description STEREO ELECTRIC VOLUME/BALANCE CONTROL
Datasheet download datasheet M51133P Datasheet
Additional preview pages of the M51133P datasheet.

📁 Similar Datasheet

  • M51131L - 2-Channel Electronic Volume Balance (Mitsubishi Electric)
  • M51132FP - 2CH ELECTRONIC VOLUME-BALANCE (Mitsubishi Electric Semiconductor)
  • M51132FP - 2ch Electronic Volume Balance (Renesas Technology)
  • M51132L - 2CH ELECTRONIC VOLUME-BALANCE (Mitsubishi Electric Semiconductor)
  • M51132L - 2ch Electronic Volume Balance (Renesas Technology)
  • M51137FP - TONE/VOLUME/BALANCE CONTROL (Mitsubishi Electric)
  • M511000A - MSM511000A (OKI)
  • M511664C - MSM511664C (OKI)
  • M5118160 - MSM5118160 / HM5118160 (ETC)
  • M51 - TRIPLE-BALANCED MIXER (Tyco Electronics)
Other Datasheets by Mitsubishi
  • M51162P - RECORDINGIPLAYBACK PREAMPLIFIER
  • M51166P - Quad Recording / Playback Preamplifier
  • M51167 - Single Chip Preamplifier
  • M51167BFP - Single Chip Preamplifier
  • M51167BP - Single Chip Preamplifier
  • M5109P - DUAL DIFFERENTIAL AMPLIFIER
  • M51200P - DUAL COMPARATOR
  • M51201L - VOLTAGE COMPARATOR

Full PDF Text Transcription

Click to expand full text

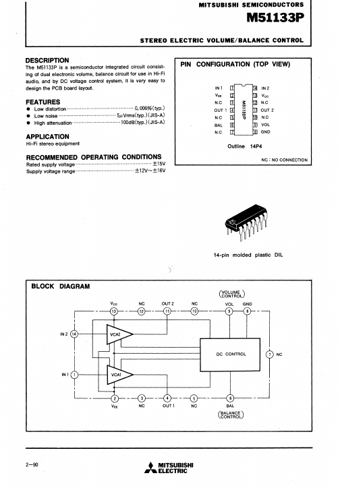

MITSUBISHI SEMICONDUCTORS MSl133P STEREO ELECTRIC VOLUME/BALANCE CONTROL DESCRIPTION The M51133P is a semiconductor integrated circuit consisting of dual electronic volume, balance circuit for use in Hi-Fi audio, and by DC voltage control system, it is very easy to design the PCB board layout. FEATURES • Low distortion ......................................... 0.006%( typ.) • Low noise ................................... 5J1Vrms(typ.) (JIS-A) • High attenuation .. ······················ .. ····l00dB(typ.) (JIS-A) APPLICATION Hi-Fi stereo equipment RECOMMENDED OPERATING CONDITIONS Rated supply voltage ............................................... ±15V Supply voltage range······ .. ························ .. ·· ±12V-±16V PIN CONFIGURATION (TOP VIEW) IN 1 N.C OUT 1 N.C BAL N.
